4JB1-TG2 Diesel Engine Prime Power 65KW Fire Fighting Pump Red 3000rpm

4JB1-TG2 Diesel Engine Prime Power 65KW Fire Fighting Pump Red 3000rpm
4JB1-TG2 Diesel Engine Prime Power 65KW Fire Fighting Pump Red 3000rpm
video play

Large Image :  4JB1-TG2 Diesel Engine Prime Power 65KW Fire Fighting Pump Red 3000rpm

Product Details:
Place of Origin: Weifang
Brand Name: Aoling
Certification: CE
Model Number: 4JB1--TG2
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable by model
Packaging Details: In export plywood
Delivery Time: In 7 days after receive the deposit.
Payment Terms: T/T
Supply Ability: 500Units/month
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Speed: 3000rpm Power: 65KW
Cool Type: Water Cooled Color: Red
Displacement: 2.771 Fuel Consumption: 218g/kw.h
Bore*Stroke: 93*102 Cylinder Number: 4
Compression Ratio: 17.4:1 Weight: 220Kg
Speed Regulation Method: Mechanical Oil Capacity: 4.5L
Cooling Capacity: 7L Application Of Altitude: 1000m-3500m
Highlight:

65KW Fire Fighting Pump

,

4JB1-TG2 Diesel Engine Fire Fighting Pump

3000rpm 4JB1-TG2 diesel engine prime power 65KW for power of the fire fighting pump in r

Why choose us?

a,Only select high standard spare parts, such as fuel pump, cylinder head, cylinder liner, piston, engine block,water pump, oil pump, air/fuel/oil filter, radiator,starter,charger alternator.

b, Quality-Control.

Raw Material Purchase Inspection.

Engine assemble inspection.

Engine testing inspection, avoid oil-water-air-leak problem . Meet 100% power loading.

Before pack-Inspection.

c. Spare parts available.

d, Engine manual instruction and parts catalog together with engine.

e,All-life service after sale.



4JB1-TG2

Project Technical parameters
Type Vertical, vertical, water cooled, four stroke, natural breathing
fuel injection system mechanical pump
Air inlet mode Boost in cold
The number of cylinders 4
Bore stroke (mm) 93/102
Total displacement(L) 2.771
ignition order 1－3－4－2
Crankshaft rotation direction Counter clockwise (for the flywheel side)
Compression ratio 17.4 :1
Maximum power(kW/ r/min) 65/3000
Idle speed (r/min) 800

Lowest fuel consumption

rate (g/kW.h)

 ≤222
Fuel Light diesel oil GB252
lubricating system Pressure splash composite
Net quality (kg) 248
Dimensions(mm) 883x667x813

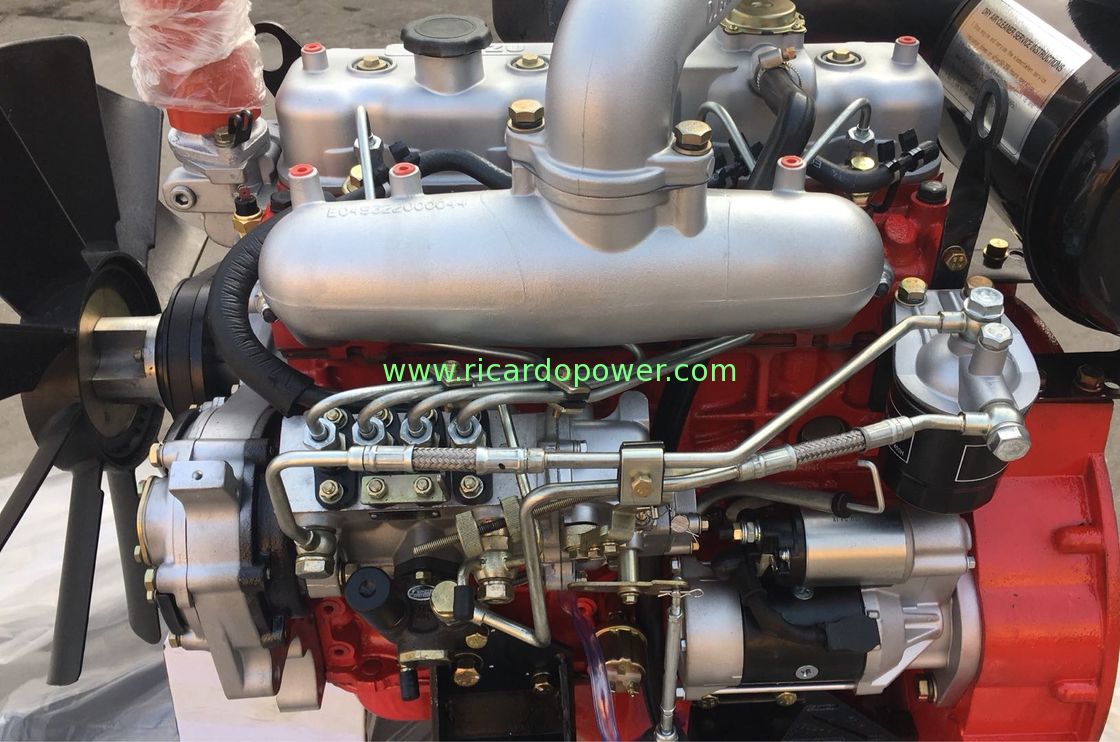

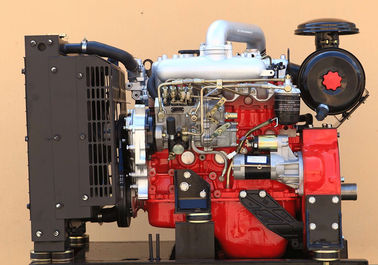

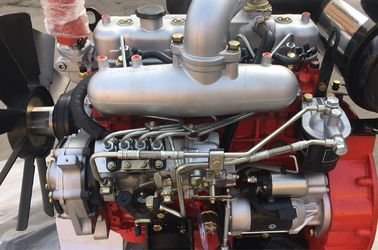

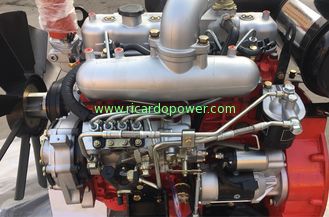

4JB1-TG2 Diesel Engine Prime Power 65KW Fire Fighting Pump Red 3000rpm 0

4JB1-TG2 Diesel Engine Prime Power 65KW Fire Fighting Pump Red 3000rpm 1



4JB1-TG2 Diesel Engine Prime Power 65KW Fire Fighting Pump Red 3000rpm 2



4JB1-TG2 Diesel Engine Prime Power 65KW Fire Fighting Pump Red 3000rpm 3

Engine in Stock


4JB1-TG2 Diesel Engine Prime Power 65KW Fire Fighting Pump Red 3000rpm 44JB1-TG2 Diesel Engine Prime Power 65KW Fire Fighting Pump Red 3000rpm 5



4JB1-TG2 Diesel Engine Prime Power 65KW Fire Fighting Pump Red 3000rpm 6

Export plywood package



4JB1-TG2 Diesel Engine Prime Power 65KW Fire Fighting Pump Red 3000rpm 7

4JB1-TG2 Diesel Engine Prime Power 65KW Fire Fighting Pump Red 3000rpm 8
