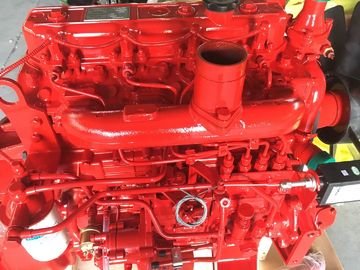

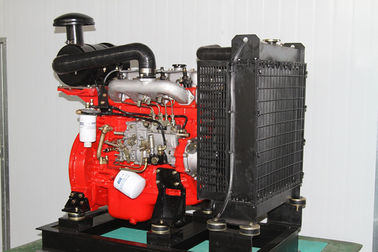

3000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red

All Products
Diesel Generator Set (91)
Ricardo Diesel Engine (51)
Power for Fire fighting pump (10)
Diesel Water Pump Set (10)
Natural Gas Generator (4)
Ricardo Engine Parts (62)
Laidong Engine Parts (8)
Cummins Engine Parts (18)
Alterantor Spare Parts (4)
Diesel Welding Generator (3)
Best Products
3000rpm 4JB1-TG3 diesel engine prime power 75KW for power of the fire fighting pump in red

3000rpm 4JB1-TG3 diesel engine prime power 75KW for power of the fire fighting pump in red

3000rpm ISUZU technology 4BD diesel engine prime power from 72KW to 100KW for power of the fire fighting pump in red

3000rpm ISUZU technology 4BD diesel engine prime power from 72KW to 100KW for power of the fire fighting pump in red

China Weifang Huaxin Diesel Engine Co.,Ltd. certification
China Weifang Huaxin Diesel Engine Co.,Ltd. certification
Hello Charley! Hope you are doing well ! We got the spare parts and fixed our engine;everything is ok now! Thanks again for all your help and effort! I will recommend you any others who will need the Ricardo engine parts! Best of luck for you! Kim from Australia

—— Kim Cague

I'm Online Chat Now

3000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red

3000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red
3000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red
video play

Large Image :  3000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red

Product Details:
Place of Origin: Weifang
Brand Name: Aoling
Certification: CE
Model Number: 4BD1-G1
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable by model
Packaging Details: In export plywood
Delivery Time: In 7 days after receive the deposit.
Payment Terms: T/T
Supply Ability: 500Units/month
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Speed: 3000rpm Power: 72KW
Cool Type: Water Cooled Color: Red
Displacement: 3.856 Fuel Consumption: 228g/kw.h
Bore*Stroke: 102*118 Cylinder Number: 4
Compression Ratio: 17.5:1 Weight: 340Kg
Speed Regulation Method: Mechanical Oil Capacity: 5.7L
Cooling Capacity: 8L Application Of Altitude: 1000m-3500m
Highlight:

72KW Power For Fire Fighting Pump

,

Power For Fire Fighting Pump 3000rpm

3000rpm 4BD1-G1 diesel engine prime power 72KW for power of the fire fighting pump in red

Why choose us?

a,Only select high standard spare parts, such as fuel pump, cylinder head, cylinder liner, piston, engine block,water pump, oil pump, air/fuel/oil filter, radiator,starter,charger alternator.

b, Quality-Control.

Raw Material Purchase Inspection.

Engine assemble inspection.

Engine testing inspection, avoid oil-water-air-leak problem . Meet 100% power loading.

Before pack-Inspection.

c. Spare parts available.

d, Engine manual instruction and parts catalog together with engine.

e,All-life service after sale.

4BD1-G1

Project Technical parameters
Type Vertical, vertical, water cooled, four stroke, natural breathing
fuel injection system Straight line mechanical pump
Air inlet mode Pressure boost
The number of cylinders 4
Bore stroke (mm) 102*118
Total displacement(L) 3.85
ignition order 1-3-4-2
Crankshaft rotation direction Counter clockwise (for the flywheel side)
Compression ratio 17.5:1
Rated speed (r/min) 3000
1 hour power(kW/ r/min) 72
Idle speed (r/min) 750±50

Lowest fuel consumption

rate (g/kW.h)

 228
Fuel Light diesel oil GB252
lubricating system Pressure splash lubrication
Net quality (kg) 320
The bare metal size (mm) 985×545×918
emission level European II or European (electronic control ECU)



3000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red 0



3000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red 1





3000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red 2



3000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red 3



3000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red 4

Engine in Stock


3000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red 53000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red 6



3000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red 7

Export plywood package



3000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red 8

3000rpm 4BD1-G1 Diesel Engine 72KW Power For Fire Fighting Pump In Red 9
