Water Cooled Ricardo Diesel Engine With Clutch For The Power Of The Straw Grinder ZH4100P

Name: Water Cooled Ricardo Diesel Engine With Clutch For The Power Of The Straw Grinder ZH4100P
Brand: Huaxin
SKU: HX
Rating: 4.8 (149 reviews)

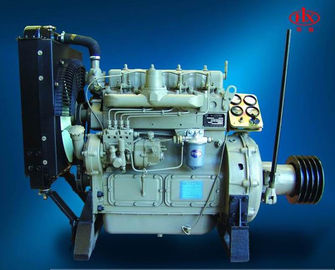

Large Image : Water Cooled Ricardo Diesel Engine With Clutch For The Power Of The Straw Grinder ZH4100P

Product Details:

Place of Origin:	Weifang
Brand Name:	Huaxin
Certification:	CE
Model Number:	HX

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable by model
Packaging Details:	In export plywood
Delivery Time:	In 7 days after receive the deposit.
Payment Terms:	T/T
Supply Ability:	1000Units/month
Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Speed:	1500r/min/1800r/min/2000rpm	Power:	36KW
Cool Type:	Water Cooled	Color:	Green
Displacement:	3.61	Fuel Consumption:	232g/kw.h
Bore*Stroke:	100*115	Cylinder Number:	4
Highlight:	Water Cooled Ricardo Diesel Engine , Ricardo Diesel Engine ZH4100P

Ricardo Diesel Engine With Clutch For The Power Of The Straw Grinder ZH4100P Color For Optional

Water Cooled Ricardo Diesel Engine With Clutch For The Power Of The Straw Grinder ZH4100P 0

Why choose us?

a,Only select high standard spare parts, such as fuel pump, cylinder head, cylinder liner, piston, engine block,water pump, oil pump, air/fuel/oil filter, radiator,starter,charger alternator.

b, Quality-Control.

Raw Material Purchase Inspection.

Engine assemble inspection.

Engine testing inspection, avoid oil-water-air-leak problem . Meet 100% power loading.

Before pack-Inspection.

c. Spare parts available.

d, Engine manual instruction and parts catalog together with engine.

e,All-life service after sale.

Engine Model	R4105D	R4105AD	R4105ZD	R4105AZD	R4105AZLD
Type	4 Strokes, Water Cooling, Inline, Direct Injection Combustion Chamber
Rated Power/Speed(kw/rpm)	38/1500	42/1500	56/1500	60/1500	70/1500
	45/1800	50/1800	65/1800	72/1800	84/1800
Cylinder Number	4
Bore*Stroke	105*125	105*130	105*125	105*130	105*130
Total Displacement of Piston(L)	4.33	4.5	4.33	4.5	4.5
Pressure Ratio	17
Firing Order	1-3-4-2
Air Intake Type	Naturally Asp.	Turbo.	Naturally Asp.	Turbo.	Naturally Asp.
Average Effective Pressure(Kpa)	776	776	1034	1034	1034
Fuel Consumption(g/kw.h)	232	232	231	231	231
Oil Consumption(g/kw.h)	1.63
Exhaust Temperature(℃)	600
Crankshaft ratating)	Inverse Hour(Facing to the power output end)
Cooling Mode	Forced Cooling

Produce and testing line

Water Cooled Ricardo Diesel Engine With Clutch For The Power Of The Straw Grinder ZH4100P 1

Water Cooled Ricardo Diesel Engine With Clutch For The Power Of The Straw Grinder ZH4100P 2

Water Cooled Ricardo Diesel Engine With Clutch For The Power Of The Straw Grinder ZH4100P 3

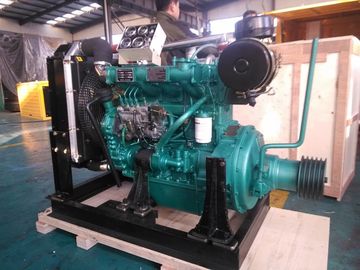

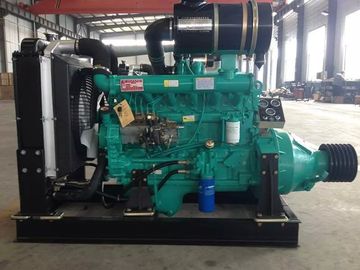

Engine in Stock

Water Cooled Ricardo Diesel Engine With Clutch For The Power Of The Straw Grinder ZH4100P 4

Water Cooled Ricardo Diesel Engine With Clutch For The Power Of The Straw Grinder ZH4100P 6

Water Cooled Ricardo Diesel Engine With Clutch For The Power Of The Straw Grinder ZH4100P 7

Export plywood package

Water Cooled Ricardo Diesel Engine With Clutch For The Power Of The Straw Grinder ZH4100P 8

Water Cooled Ricardo Diesel Engine With Clutch For The Power Of The Straw Grinder ZH4100P 9
