Product Description:

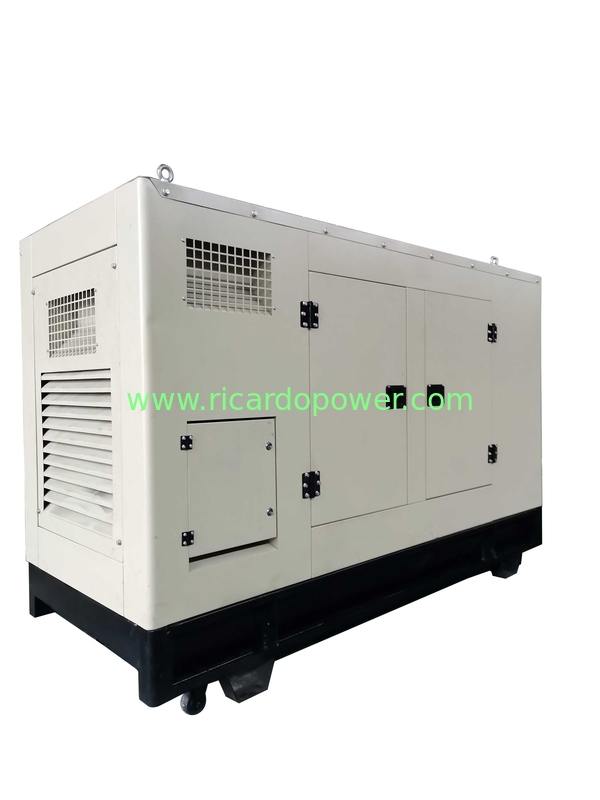

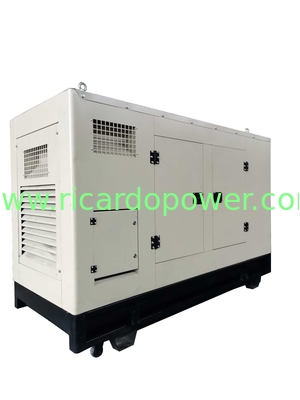

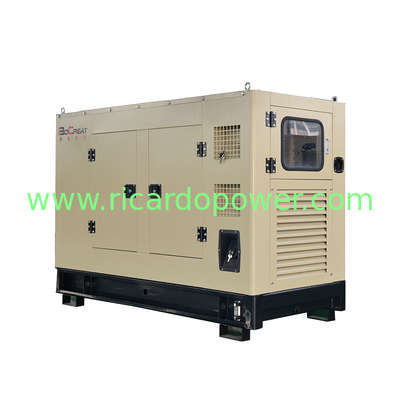

Silent Power Generator, Soundproof Diesel Generator, Diesel Genset
The Diesel Generator Set is equipped with world-leading brands of controllers, such as Smartgen, Deepsea, ComAp, Deif, Harsen, and features EU Stage Ⅱ emission standards. It has a frequency of either 50Hz or 60Hz, and has low oil consumption of ≤1.0g/kw.h and fuel consumption of ≤210g/kw.h. This silent power generator is designed to be soundproof, making it ideal for all kinds of applications.
The Diesel Generator Set is highly reliable and cost-effective. It is available in a wide range of power ratings to suit different needs. It is easy to operate and maintain, and is suitable for remote and critical applications. Our Diesel Generator Set is built to meet the highest standards of safety and quality, and can be relied upon for continuous and reliable operation.
| Specification data sheet of the diesel generator set |
| Brand of Diesel genset |
Brand and model of Engine |
Brand and model of alternator |
Controller |
| Star |
Rcardo ZH4100D |
DAC DAC-184G |
6110 |
| Frequency |
50HZ/60HZ |
| Voltage |
110/127/220V/230/380/400/440/480 optional |
| Phase |
Single phase and three phase optional |
| Open type |
Silent type |
| 1800*700*1200(mm) |
600Kg |
2000*900*1300(mm) |
850Kg |
| Specification of the diesel engine |
| Manufacture |
Ricardo |
Speed regulating mode |
Mechanical |
| Engine model |
ZH4100D |
Start method |
Battery |
| Max. Power(KW) |
30KW |
Cylinder type |
In-line |
| Bore*Stroke(mm) |
100*125 |
Inspiration way |
N/A |
| Specification of the alternator |
| Manufacture |
DAC |
Insulation Class |
H |
| Alternator model |
DAC-184G |
Protection grade |
F |
| Power(KW) |
25 |
Wire connection type |
Y |
| Power factor |
0.8 |
Excitation mode |
Brush less |
| Controller |
| Display mode |
Support Eight Language( EN/CN/ES/FR/AR/RU/PO/Ge)by LCD display |
| Button |
Auto/Manual/Shut off/;Start/Emergency/Reset |
| Display data |
Voltage;Current;Frequency;Apparent power;Active power;Power factor;Running speed;Engine oil pressure;Engine water temperature;Battery voltage;Genset running time |
| Alarm and protection |
Battery voltage low/high;Low oil pressure;High water temperature;Over speed;low speed;Over current;Voltage low/high;Over load;Start failure |
| Self starting reaction time |
Within 5 seconds start automatically after get the power-off signal;within 60 seconds reaching the rated output voltage;Within 120 seconds stop automatically after get the power-on signal(The time canbe set by yourselves) |
| Closing and switch mode |
MCCB-If add ATS canbe realized transfer automatically without people |
Features:
- Product Name: Diesel generator set
- Cooling System: Water
- Starting System: Electric/Manual
- Fuel: Diesel
- Speed: 1500rpm/1800rpm
- Oil Consumption: ≤1.0g/kw.h
- Highlight: Super Silent Diesel Generator, Silent Diesel Generator, Silent Power Generator
Applications:
RICARDO ST-30GFS is a super silent diesel generator, which is certified with CE certification, and is capable of producing power in the range of 20KW to 1200KW with a frequency of 50Hz or 60Hz. It has an oil consumption rate of ≤1.0g/kw.h and is powered by diesel fuel. The generator is equipped with a water-cooled system, which ensures quiet operation. The minimum order quantity is 1 unit and the price is $2500 per unit. The generator is packaged in a plywood and delivery time depends on the quantity. Payment terms are T/T and the supply ability is 150 unit/month.
RICARDO ST-30GFS is the ideal silent power generator for the commercial and industrial sector due to its high performance, low fuel consumption, and quiet operation. It is also suitable for standby power generation and emergency situations. With its robust and reliable design, it provides reliable power supply that is essential for running businesses and industries.
Customization:
Customizable Diesel Generator Set
RICARDO's diesel generator set is the perfect choice for reliable power solutions. It is designed with a model number of ST-30GFS and comes with a CE certification. The minimum order quantity is 1 and the price is $2500. It is packaged in a plywood and the delivery time depends on the quantity. Payment is accepted via T/T and the supply ability is 150 unit/month. The controller can be Smartgen/ Deepsea/ ComAp/ Deif/ Harsen. The power range is 20KW-1200KW and the emission standard is EU Stage Ⅱ. The speed is 1500rpm/1800rpm and it is available in either electric or manual starting system.
This diesel generator set is perfect for all of your diesel engine generator, diesel genset, silent diesel generator, and open type diesel generator needs. Choose RICARDO's diesel generator set for reliable power solutions.
Support and Services:
Diesel generator set technical support and services include:
- Installation services
- Preventive maintenance
- On-site repair and troubleshooting
- Control system design and upgrades
- Component replacement and repair
- On-site technical support and training
- Parts and accessories
Packing and Shipping:
Packaging and Shipping
The diesel generator set will be securely packaged and shipped to ensure that it arrives in perfect condition.
We use a combination of strong wooden boxes, corrugated cardboard boxes, bubble wrap, and other materials to protect each generator set during transit.
Our team will load the generator sets onto the transport vehicle and will monitor the condition of the packaging during transit.
We guarantee safe delivery of your generator set.
