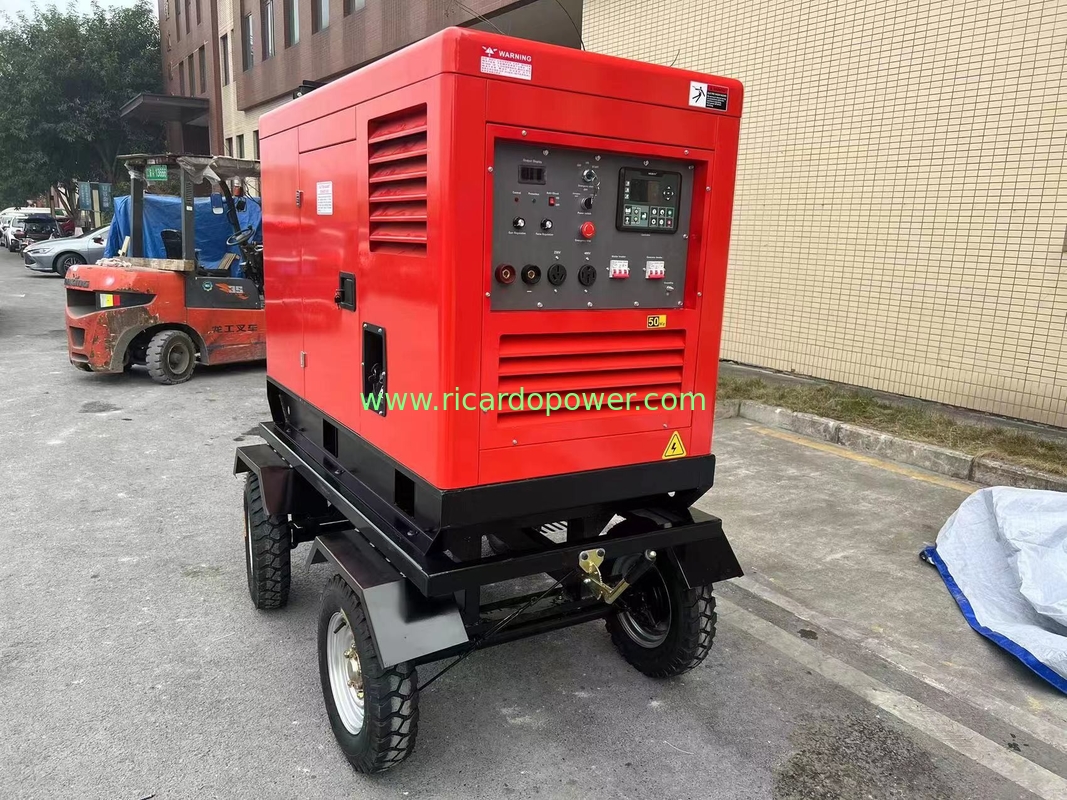

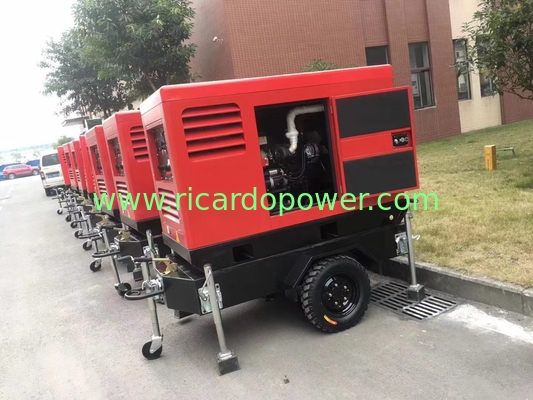

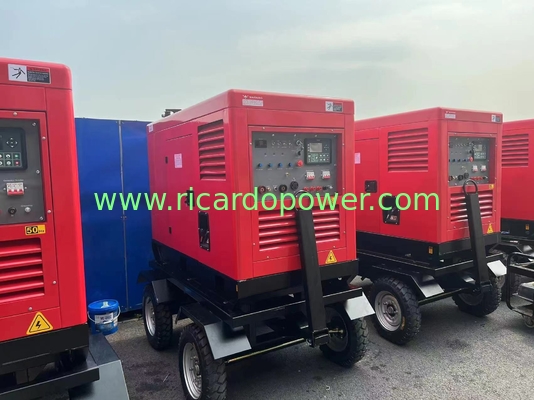

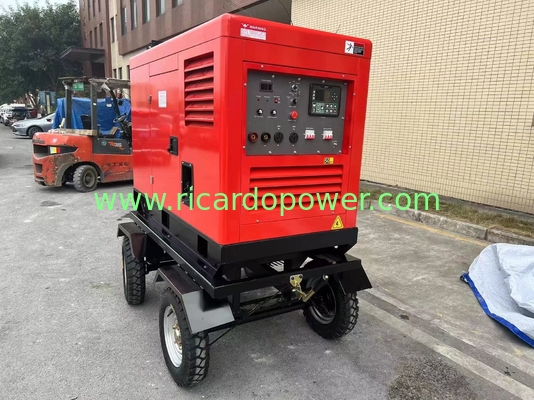

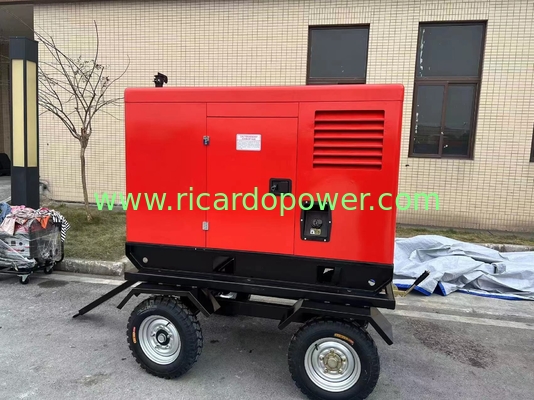

400A-20KW Diesel Welding Generator Set Water Cooled System WP2.3D25E200

Large Image : 400A-20KW Diesel Welding Generator Set Water Cooled System WP2.3D25E200

Product Details:

Place of Origin:	Weifang
Brand Name:	XIN YANDA
Certification:	ISO
Model Number:	AXC1-400A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 1500
Packaging Details:	In export plywood
Delivery Time:	In 10 dasy after receive the deposit
Payment Terms:	T/T
Supply Ability:	200/month

Contact Now

Detailed Product Description

Model:	AXC1-400A	Diesel Engine:	WP2.3D25E200
Engine Power:	25KW	Generator Prime Power:	18KW
Generator Standby Power:	20KW	Welding Amper:	400A
Welding Thickness:	0.8-15mm	Amper Adjust Range:	20A-400A
Cooling System:	Water Cooled
Highlight:	20KW Diesel Welding Generator , WP2.3D25E200 Diesel Welding Generator , Water Cooled Welding Generator Set

400A-20KW Portable Diesel Welding Generator Set Of Welding And Generator For Insustrial Use

400A Trailer Silent type diesel welding genset Feature:

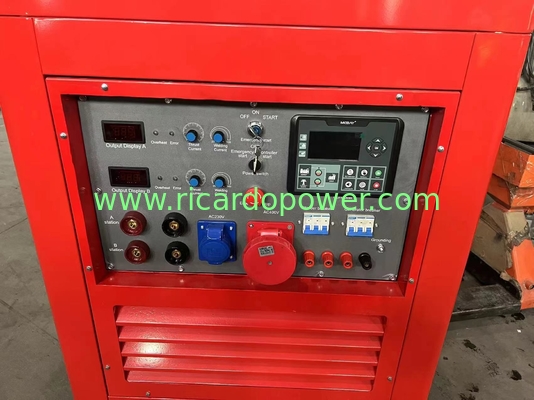

n LCD control panel display, easy operationn Anticorrosion, cold rolled steel canopy with acoustic foam, low noise,

durability

n Over load protection, breaker protection

n Arc welding, welding line can extend to 30m

n Output current 400A,welding thickness 0.8-15mm

400A-20KW Diesel Welding Generator Set Water Cooled System WP2.3D25E200 0

Model		AXC1-400A
Alternator	excitation	Wireless self excitation
	The prime power	20KW
	frequency	50Hz
	RPM	1500r/min
	The rated voltage	400V
	Phase No. & connection	3 phase , star connection
	Insulation grade	H
	Protection class	IP23
Engine	engine	WP2.3D25E200
	Power/H	25KW
	RPM	1500r/min
	Startup	DC12V electric
	Engine type	Inline ,direct injection
	Intake	Natural intake
	stroke	4
	Cylinder No.	4
	bore x stroke	80x90mm
	Governing system	Electron governor
	displacement	2.289L
	Fuel consumption	≤200g/kWh
	oil	≤1.5g/kWh
Genset	frequency	50Hz
	Rated voltage	400V
	The prime power	18KW
	The standby power	20KW
	Rated ampere	Each phase 26.0A
	Max. ampere	Each phase 29.0A
	phase	3 phase
	Noise	≤75dB/7m
	size	18009001300mm/250015001850(with trailer)

	N.G	700kg/750kg(with trailer)
	Rated input ampere	3 phase 380V 50Hz
	rated output ampere	26A
	rated welding A/V	17KVA
	welding ampere	400A/36V
	no load voltage	400A60%DE
	Flux Cored (FCAW)	2.0
	load continuous rate	67±5V
	ampere set range	20-400A
	efficiency	≥85%
	Power factor	>0.95
	Insulation grade	F
	Cooling system	Air cooled
	Protection grade	IP21S

400A-20KW Diesel Welding Generator Set Water Cooled System WP2.3D25E200 1
