Portable Silent Diesel Welding Generator Set Ampere 400A For Industrial

Large Image : Portable Silent Diesel Welding Generator Set Ampere 400A For Industrial

Product Details:

Place of Origin:	Weifang
Brand Name:	XIN YANDA
Certification:	ISO
Model Number:	AXC1-400A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 6000
Packaging Details:	In export plywood
Delivery Time:	In 10 dasy after receive the deposit
Payment Terms:	T/T
Supply Ability:	500/month

Contact Now

Detailed Product Description

Generator Prime Power:	18KW	Generator Standby Power:	20KW
Engine Model:	WP2.3D25E200	Engnine Power:	25KW
Welding Ampere:	400A	Welding Voltage:	36V
Current Rang:	20A-400A	Power Factor:	0.95
Insulation Grade:	F	Cooling System:	Water
Protection Grade:	IP21
Highlight:	Silent Diesel Welding Generator Set , Industrial Diesel Welding Generator Set , 400A Diesel Welding Generator

Portable And Silent Diesel Welding Generator Set Of Welding And Generator With Ampere 400A For Industrial

400A Trailer Silent type diesel welding genset Feature:

LCD control panel display, easy operationn Anticorrosion, cold rolled steel canopy with acoustic foam, low noise,

durability

Over load protection, breaker protection

Arc welding, welding line can extend to 30m

Output current 400A,welding thickness 0.8-15mm

Portable Silent Diesel Welding Generator Set Ampere 400A For Industrial 0

Model		AXC1-400A
Alternator	excitation	Wireless self excitation
	The prime power	20KW
	frequency	50Hz
	RPM	1500r/min
	The rated voltage	400V
	Phase No. & connection	3 phase , star connection
	Insulation grade	H
	Protection class	IP23
Engine	engine	WP2.3D25E200
	Power/H	25KW
	RPM	1500r/min
	Startup	DC12V electric
	Engine type	Inline ,direct injection
	Intake	Natural intake
	stroke	4
	Cylinder No.	4
	bore x stroke	80x90mm
	Governing system	Electron governor
	displacement	2.289L
	Fuel consumption	≤200g/kWh
	oil	≤1.5g/kWh
Genset	frequency	50Hz
	Rated voltage	400V
	The prime power	18KW
	The standby power	20KW
	Rated ampere	Each phase 26.0A
	Max. ampere	Each phase 29.0A
	phase	3 phase
	Noise	≤75dB/7m
	size	18009001300mm/250015001850(with trailer)

	N.G	700kg/750kg(with trailer)
	Rated input ampere	3 phase 380V 50Hz
	rated output ampere	26A
	rated welding A/V	17KVA
	welding ampere	400A/36V
	no load voltage	400A60%DE
	Flux Cored (FCAW)	2.0
	load continuous rate	67±5V
	ampere set range	20-400A
	efficiency	≥85%
	Power factor	>0.95
	Insulation grade	F
	Cooling system	Air cooled
	Protection grade	IP21S

	Qty load for one 40ft container	9 Units

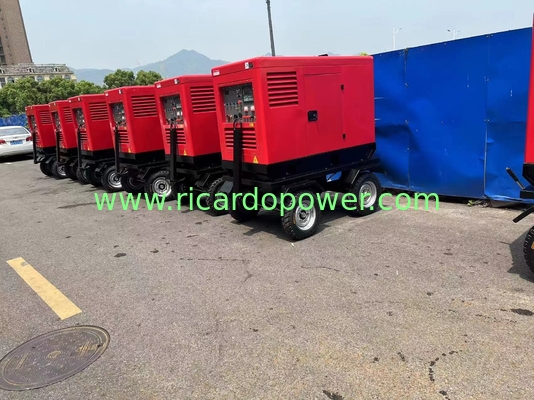

Portable Silent Diesel Welding Generator Set Ampere 400A For Industrial 1

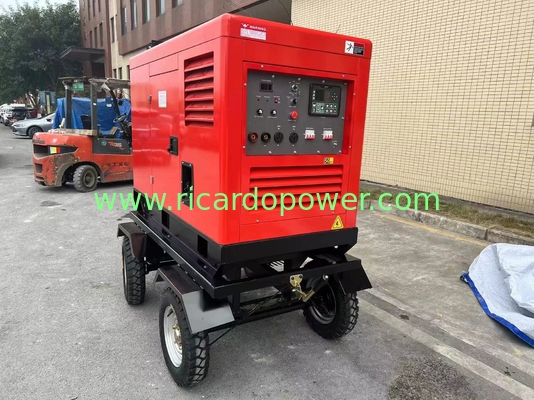

Portable Silent Diesel Welding Generator Set Ampere 400A For Industrial 2

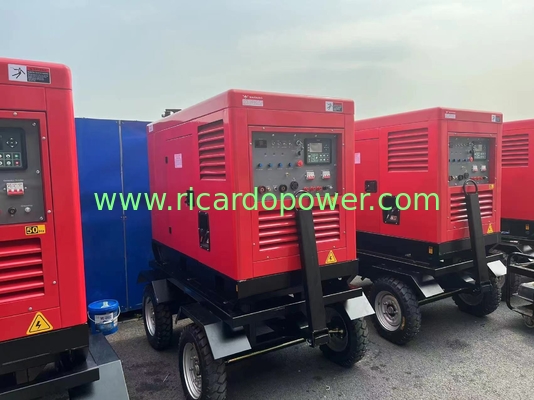

Portable Silent Diesel Welding Generator Set Ampere 400A For Industrial 4

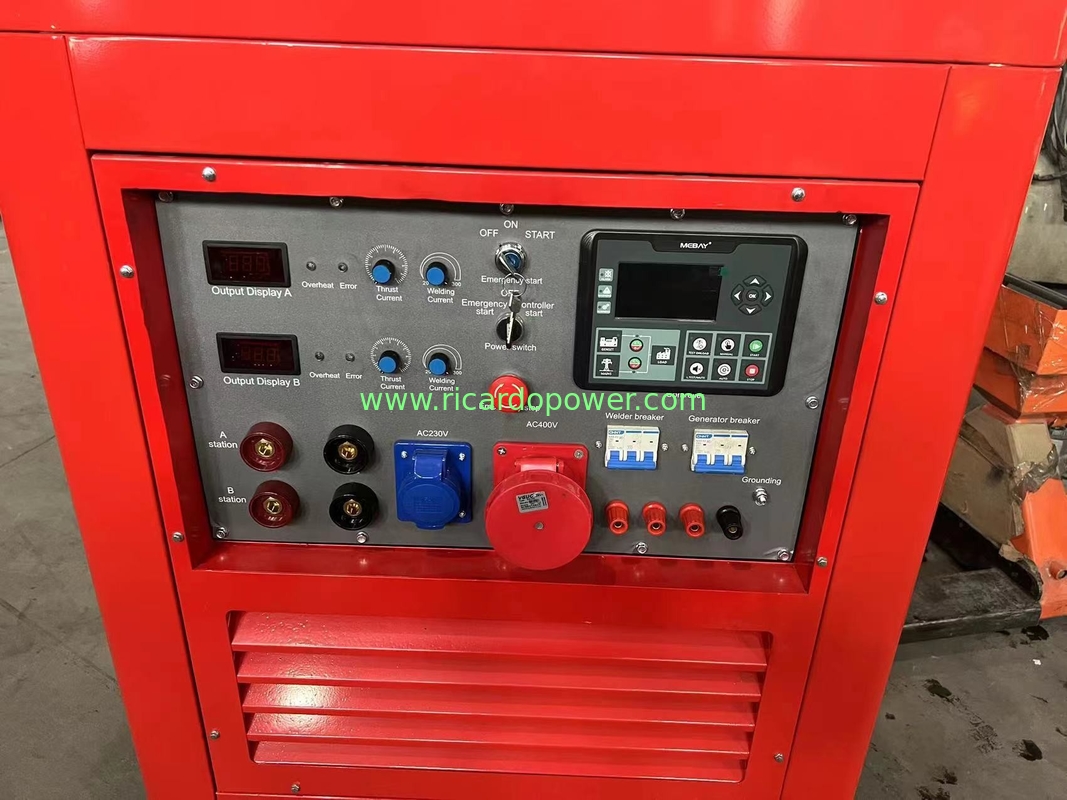

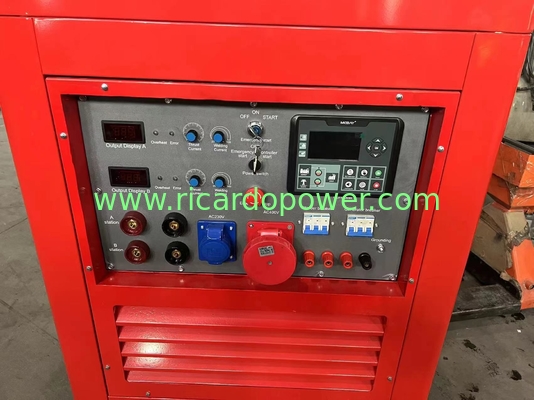

Portable Silent Diesel Welding Generator Set Ampere 400A For Industrial 5
